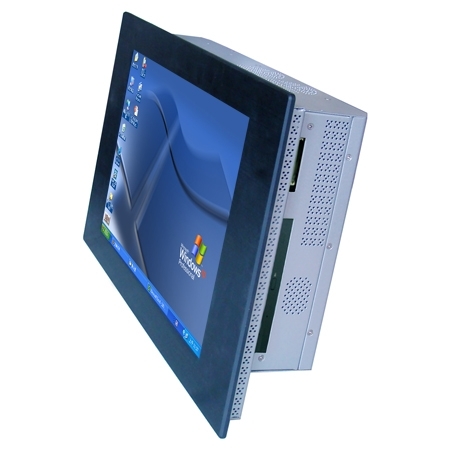

15"Industrial Panel PC

Description

15" Industrial Panel PC Platform, Intel / AMD / VIA CPU Compatible

Features

High performance PC up to Pentium 4

15" XGA TFT LCD

Modularized system Design

Resistive Touch screen (optional)

1 -slot PCI extension

NEMA 4/ IP-65 compliant front panel

System

Main Board: Standard Mini-ITX (170X 170mm )

Processor : Intel / AMD / VIA

Upgradable standard SDRAM / DDR / DDR2 memory

System Fan: 2* (60x60x 10mm ) cooling fan

Speaker: 2* 2W Stereo Speaker

OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management

Construction: Heavy duty steel & Aluminum (Front panel)

Dimensions: (WxHxD) With front panel: 436mm * 313mm * 104mm

Dimensions: (WxHxD) W/O front panel: 430mm * 307mm * 99 mm

Packing Dimension:536x395x 216mm

NET weight: 10.5KG

Gross weight: 11.6KG

Open frame structure(optional)

LCD

Display Type : 15" XGA TFT LCD

Resolution : 1024768

Max.color : 16.2M

Luminance : 250 cd/m2

View Angle : 150(H) , 135(V)

Pixel Pitch : 0.297 x 0.297 mm

Contrast Ratio :700 : 1

Response Time : 8 ms

Power Consumption : 11.27W

LCD MTBF : 50,000hrs

Touchscreen(optional)

Type: Analog resistive type : 25VDC

Resolution: continuous

Light transmission: 80% or more

Controller: RS-232 interface( or USB option)

Power consumption:<5V @1mA

Surface hardness : 3H

Operating force : 100g

Life expectancy : 1 Million

Storage

CF Socket ( optional )

Interchangeable slim optical drive (Right side)

2.5" ATA / SATA high Capacity HDD (horizontal)

Environmental

Operating temperature: 32 F~113 F (0 C to 45 C)

Storage temperature: -4 F~140 F (-20 C to 60 C)

Storage humidity: 10% to 90%non-condensing

Vibration: 17 to 500HZ 1G PTP

Shock: 1G /peak( 11m sec)

Front panel protection: meet nema4&IP65(IPPC)

Power Supply

INPUT: 115~240 VAC,50/60Hz

OUTPUT: ATX 300W with active PFC +5V@ 12A , +12V@ 16A

ATX 150W / 350W power supply ( optional )

Mounting

Wall-mount/Desktop stand/swing arm

Meets standard VESA (75/ 100mm ) mounting

Ordering Information

IPPC-1543 -300X

Industrial Panel PC with 15" TFT LCD with 300W power supply.

IPPC-1543 T-300X

Industrial Panel PC with 15" TFT LCD/Touch screen, with 300W power supply.

OPPC-1543 -300X

Open frame Industrial Panel PC with 15" TFT LCD and 300W power supply.

OPPC-1543 T-300X

Open frame Industrial Panel PC with 15" TFT LCD/Touch screen and 300W power.
