Low Cost GSM modem Suppliers

AG-2403R

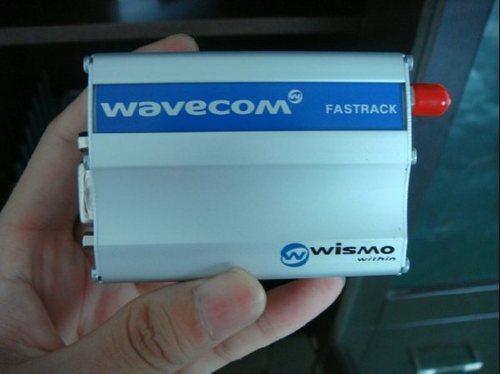

Wavecom GSM Modem

Design

Industrial Aluminium Casing

Based On

Based on WAVECOM Module  Q2403A

Band

Dual Band 900/1800 Mhz

Internet

Wireless Access to internet

TCP/IP stack

NO

SIM Application Tool kit

Always on Line

Confirm with ETSI GSM Phase2 + Standard

AT Commands

Support AT command to make remote control(GSM07.07 & 07.05)

Interface

Standard RS232 Interface

SIM Slot

3 Volt SIM Card slot

GPRS Class

GSM + GPRS ( GPRS Class:10)

Transmatting Speed

Maximum Transmatting Speed 9.6/115.2/192.0 Kbps

DTMF

Double Tone multi frequency function(DTMF)

Work

Send and Receive SMS, DATA, Voice functions

Antenna

Antenna with high sensitivity

Output Power

Class 4(2W@850900Mhz

Class 1(1W@1800 Mhz

Input Voltage

5V to 24 V DC

 Input Current

 1A to 2 A

Working Temp.

(-20C to -+60C)

Store.temp.

(-25C to -+70C)

Size

70*50*15mm

Weight

55 Grams.

Accessories

With Power adapter,DB15 pin to 9 Pin Cable,Antenna,
